Technical index and composition
Introduction
Technical index and composition for Solid state HF welder:
Power range：60kW-1800kW
Frequency range：150kHz-600kHz
Rated DC voltage：235V
Network voltage：220V~460V,
Power system: three phase, 50/60Hz.
Selection table for welder power
Model |
Welder power (KW) |
Frequency （KHZ） |
Pipe diameter（mm） |
Thickness （mm） |
Welding Speed （m/min） |
MG16 |
60 |
600 |
Φ8-Φ10 |
0.25-0.4 |
100 |
MG20 |
100 |
600 |
Φ8-Φ20 |
0.3-1.0 |
100 |
MG32 |
100 |
400 |
Φ12-Φ32 |
0.8-1.5 |
100 |
MG32 |
150 |
400 |
Φ16-Φ32 |
1.0-2.0 |
100 |
MG50 |
200 |
400 |
Φ20-Φ50 |
1.0-3.0 |
100 |
MG50(76) |
250 |
400 |
Φ32-Φ63 |
1.2-3.25 |
100 |
MG76 |
300 |
350 |
Φ38-Φ76 |
1.2-4.0 |
100 |
MG89 |
300 |
350 |
Φ42-Φ89 |
1.5-4.5 |
70 |
MG114 |
350 |
300 |
Φ48-Φ114 |
1.5-4.5 |
65 |
MG140 |
400 |
300 |
Φ60-Φ140 |
2-5 |
60 |
MG165 |
500 |
250 |
Φ76-Φ165 |
2-6 |
50 |
MG219 |
600 |
250 |
Φ89-Φ219 |
2-8 |
50 |
MG273 |
800 |
200 |
Φ114-Φ273 |
3-10 |
45 |
MG325 |
1000 |
200 |
Φ140-Φ325 |
4-12.7 |
40 |
MG377(355) |
1200 |
150 |
Φ165-Φ377 |
4-14 |
35 |
MG406 |
1400 |
150 |
Φ219-Φ406 |
6-16 |
30 |
MG508 |
1600 |
100 |
Φ273-Φ508 |
6-18 |
25 |
MG660 |
1800 |
100 |
Φ325-Φ660 |
6-20 |
20 |
Note: above data are for reference only, actual parameters according to field conditions.

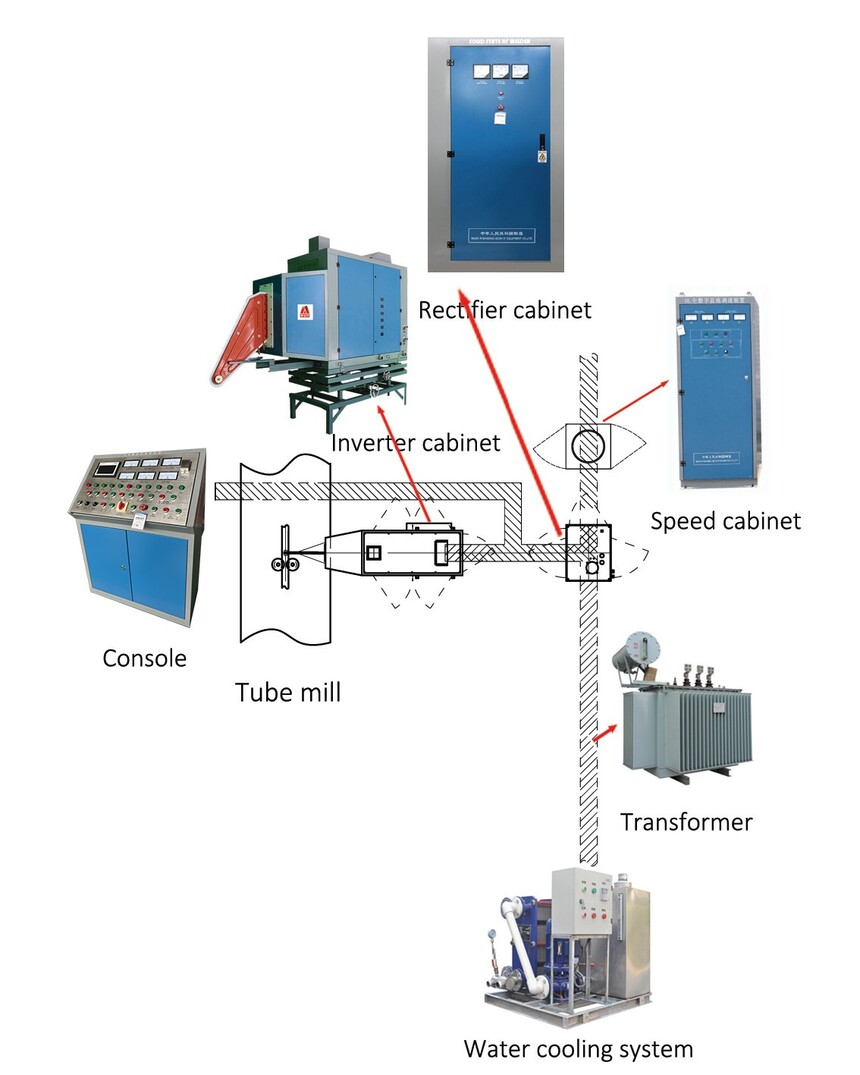

Composition and layout for the whole set of Solid State HF welder(can be arranged according to actual situation)
